A door lock may appear to be a very simple device, but it conceals a very clever mechanism of small moving parts. All the pieces are collaborative to ensure homes are safe and accessible. Knowing the components of a door lock will assist you in making smarter decisions when installing or upgrading a door lock.
It is also useful in cases where something goes wrong and you require a quick fix. To make things easy for you, we will simplify all that in simple terms, and thus nothing seems confusing or overwhelming.
Every part has a definite role to play, as evidenced by internal pins and the outer latch. At the conclusion, you will know how these systems work and why each component is important in everyday life.

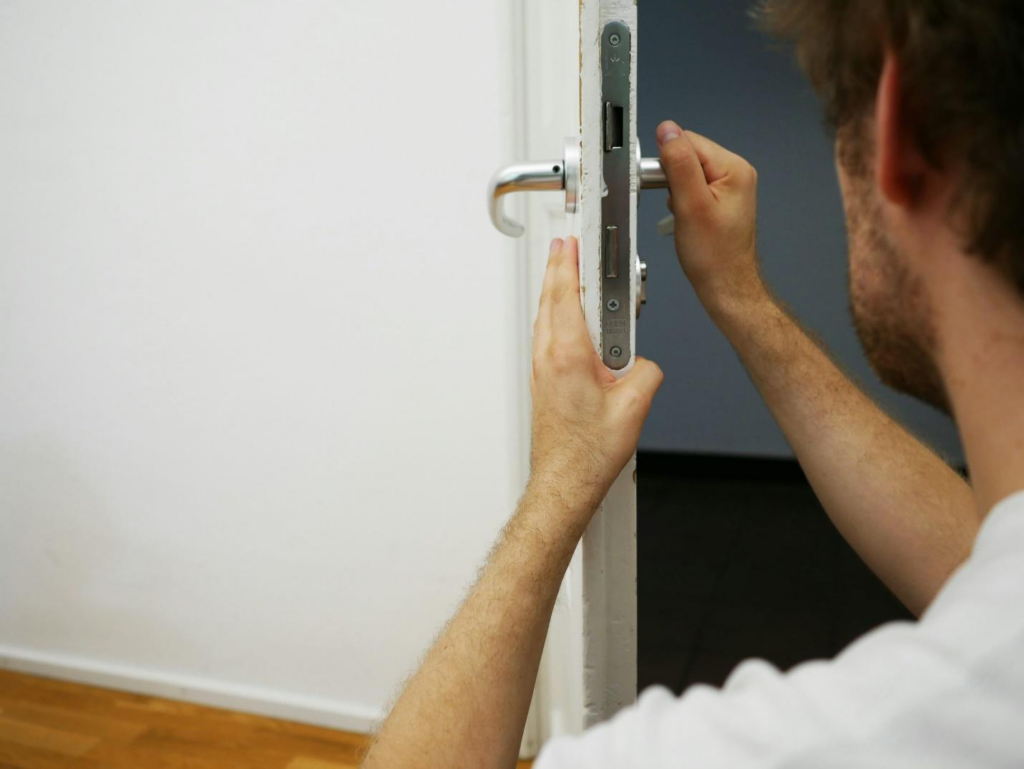

Important Lock Components and Their Key Functions
(Source)
Any lock is based on a combination of internal and external factors that ensure a smooth running of the lock. These door lock parts are linked in a straightforward yet efficient manner. Every part has a certain task, and the withdrawal of one part may halt the whole system. Let’s elaborate on these components in a practical and understandable way.
Cylinder/Plug
The cylinder, commonly referred to as the plug, is located in the middle of most locks. Here, the key is introduced, and it starts to work. The plug contains small chambers that contain pins that respond to the shape of the key. Cylinder locks are still one of the most popular security systems in residential buildings.
The plug can only turn when the appropriate key positions the pins accordingly. When the key is incorrect, the plug remains in the lock. This is the basic step that is the basis of most locking systems. The lock is useless without a working cylinder.
Pins and Springs
The concealed defense mechanism within the lock is made up of pins and springs. These small components determine whether the plug is able to rotate or remain locked. Pin tumbler locks are based on the alignment of the locks to work properly.
The pin stacks have a top pin and a bottom pin with a spring above them. As a key is inserted, the pins are raised to a certain height. When all the pins are aligned at the shear line, the plug will turn smoothly. When a single pin remains out of position, the lock prevents movement. This is a mechanism that prevents the opening of the lock by unauthorized keys.
Bolt/Latch
The moving part that holds the door together is the bolt or latch. It runs into the door frame when the lock is engaged. Good latches can help keep the risk of break-ins to a minimum. It has two common types, spring latches and deadbolts. Spring latches can be easily pulled back by turning the handle.
Deadbolts have a key or thumbturn to move. This increased resistance enhances security. The door is firmly closed under pressure from a well-built latch. Locking problems are usually caused by weak or worn bolts, and regular inspections can help ensure that the bolts are strong and well-maintained.
Strike Plate
The plate of the strike is on the door frame and is the recipient of the latch or bolt. It might appear to be a simple one, but it has a significant impact on security. Reinforced strike plates enhance the strength of the doors in case of forced entry.
A powerful plate disperses the impact over a broader range, which is more difficult to break through. This is an aspect that many homeowners do not consider when installing.
Such an error compromises the whole locking mechanism. A reinforcement to a reinforced plate can often provide superior protection. The most effective lock cannot work without the appropriate support of the frame.
Thumbturn
The thumbturn enables you to lock or unlock the door on the inside without a key. This will be convenient, particularly in times of emergency. Easy exit mechanisms enhance safety during evacuations. The lock is unlocked quickly by a simple twist of the thumbturn.
This component is usually found on deadbolt systems. It works with the internal mechanism to control the bolt’s movement. Although it is easy to use, it must still offer strong resistance to avoid accidental unlocking. A good thumbturn balances between convenience and control.
Cam/Tailpiece
The cam or tailpiece is used to attach the cylinder to the locking mechanism. It conveys the movement of the key or thumbturn to the bolt. Internal connectors, such as cams, are used to make sure that the mechanical operation is smooth. The cam moves with the rotating plug.
This movement forces or pulls the bolt into place. A broken tailpiece can easily cause locking failures. This is one aspect that many people overlook since it remains concealed. Nonetheless, it is at the center of the functioning of all components of a door lock in an efficient manner.

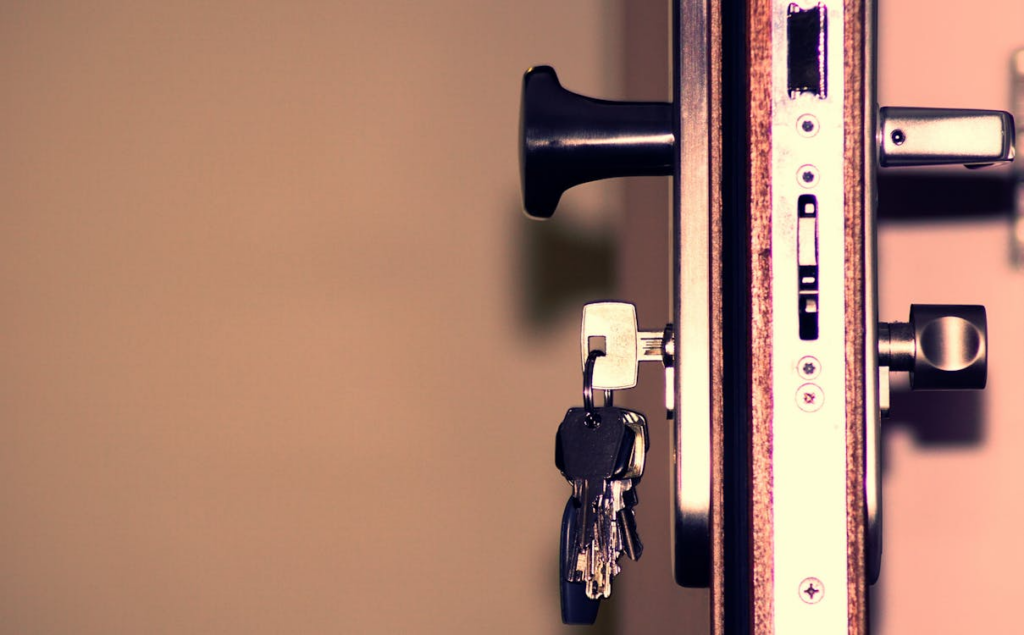

Mechanism (How They Work)
(Source)
With all the parts now clear, it is time to see how the parts work together as a system. Components of a door lock do not work in isolation. They slide one after another, forming a smooth locking and unlocking process. This mechanism works in a sequence of steps as explained below.
Resting State
When the lock is in the resting position, the lock is held in place with the bolt protruding into the strike plate. The pins within the cylinder are not aligned, and they prevent movement. Properly locked doors decrease the risk of burglary by a significant margin. At this stage, the plug is not able to rotate.
All remain motionless until a key is inserted or the thumbturn is made. This condition guarantees that the door is closed and locked. Any effort to open the lock without the correct alignment will not work. The default position of the lock is the resting state, which ensures safety at all times.
Key Insertion
Once a key is inserted in the cylinder, it starts communicating with the pins. The grooves on the key correspond to the height of the pins. An important thing to note here is that the accurate key cuts define the alignment of pins. When the key slides in, it raises each pin to a different position.
This will loosen the lock to move. When the key is an exact match of the lock, all pins will be at the shear line. Otherwise, the pins remain uneven. This stage sets the foundation for unlocking. Without proper insertion, the mechanism cannot move forward.
Turning
Once the pins align correctly, the plug becomes free to rotate. Turning the key applies force to the cylinder. This motion transfers through the cam or tailpiece. A well-maintained lock turns without resistance.
If the lock feels stiff, internal parts may need attention. Turning represents the moment when the lock transitions from static to active. This stage connects the key’s motion to the internal system, setting the bolt in motion.
Engaging/Disengaging
During this phase, the cam moves the bolt either into or out of the strike plate. Engaging means the bolt extends to lock the door. Disengaging means it retracts to open the door. This stage defines whether the door stays secure or becomes accessible.
Smooth engagement ensures the door closes tightly. Poor alignment may cause sticking or incomplete locking. Keeping this mechanism in good condition ensures consistent performance and reliable security every day.
Locking
Locking completes the process by securing the bolt in place. Once the key returns to its original position or the thumbturn resets, the pins drop back into their resting positions. The system resets itself automatically after each use. This cycle repeats every time the lock operates.
A well-functioning lock performs this action without delay or resistance. Understanding this final step helps you recognize when something feels off, allowing quick fixes before problems grow larger.
