Basement windows bring daylight and ventilation into below-grade rooms, but their specification involves more than choosing a frame size. Room use, emergency escape requirements, clear opening, window-well geometry, drainage, waterproofing, thermal performance and installation details all affect the final selection.
If a basement room must provide an emergency escape and rescue opening, the selected unit has to satisfy the applicable local requirements in its fully open position. A catalog label such as “egress window” does not replace verification of the actual clear width, clear height, clear area, sill position and unobstructed route to the exterior.
Use this guide to compare basement window types, measure the complete opening and prepare the information needed for drawings, quotation and release.
What a Basement Window Needs to Do
Start with the intended use of the room. A utility or storage space may need daylight and controlled ventilation, while a bedroom or occupied room may also require an emergency opening. The project drawings and local requirements should identify which openings carry that function.
- Daylight: coordinate glass area, privacy and the depth of the exterior well.
- Ventilation: select an operation type that can be reached and opened without obstruction.
- Emergency escape: verify the clear opening of the exact product, not only the nominal frame size.
- Water control: coordinate the frame, sill, flashing, well and drainage route with the wall assembly.
- Thermal and condensation control: review frame, glazing, spacer, interior humidity and installation interfaces.

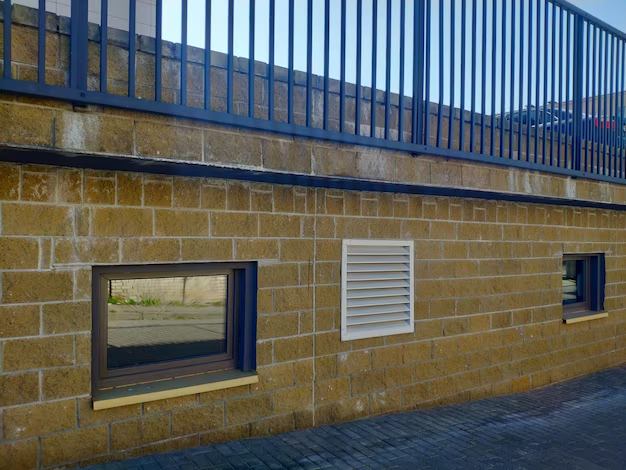

Common Basement Window Types
| Operation | Useful characteristics | Checks before selection |
|---|---|---|
| Hopper | Hinged at the bottom and opens inward; commonly used for compact ventilation openings. | Interior clearance, insect screen, water management and whether the actual clear opening meets the required use. |
| Awning | Top-hinged and opens outward; can provide ventilation while limiting direct rain entry in some exposures. | Exterior well clearance, drainage, hardware reach and wind or security requirements. |
| Sliding | Fits wide openings without an inward or outward swinging sash. | Only part of the framed opening is normally clear; verify the operating panel, track, drainage and actual clear dimensions. |
| Casement | Side-hinged sash may provide a comparatively large clear opening for its frame size. | Exterior swing clearance, operator position, hardware, well geometry and product-specific clear opening. |
| Fixed or glass block | Provides daylight and can support privacy or security objectives. | No operable ventilation or emergency escape unless a separately approved operable component is included. |
For a wider review of frame materials, operation types, glazing and project requirements, see our window and door systems guide and the comparison of aluminum and wooden windows.
Verify Egress by Clear Opening, Not by Product Name
There is no single frame width and height that automatically makes every basement window compliant. Frame profiles, sash construction, hinges, operators and screens can change the usable opening. Two windows with the same outside dimensions may therefore provide different clear openings.
Confirm the governing requirement for the project location and building use, then obtain clear-opening data for the exact size and configuration. Check the clear width, clear height, clear area, sill position, operating method and whether guards, security devices, screens or the window well obstruct the route. Final compliance should be reviewed by the responsible project professional or authority.
Measure the Complete Opening
Record the masonry or structural opening separately from the window frame size and the clear opening. Measure width at the top, middle and bottom; measure height at the left, center and right; compare diagonals; and record the finished-floor and exterior-grade datums. The selected manufacturer’s drawings should define the required installation clearance and any subframe, flange, receptor or fixing condition.
Our rough-opening measurement guide explains the distinction between nominal, frame, rough and clear-opening dimensions. For early planning only, the window size guide can help organize common product references before exact drawings are available.
Coordinate the Window Well, Drainage and Waterproofing
A below-grade window is part of a water-management assembly. Coordinate the window well with exterior grade, wall waterproofing, sill or pan flashing, head and jamb details, perimeter sealant and a drainage route that does not depend on the window frame alone. Keep soil, landscaping and stored items away from drainage paths and required escape clearances.
The well must also provide enough space for the sash to open fully and for a person to use the opening where escape is required. Covers, ladders, steps, guards and security devices should be coordinated with the same function and checked against local requirements.
Review Thermal, Security and Operation Requirements
Frame material, glazing, spacer, air sealing and interior humidity affect surface temperature and condensation risk. Use declared product data required by the project rather than assuming that one operation type is automatically better insulated. Where security is important, coordinate locks, restricted opening, laminated or safety glazing and external protection without blocking required operation or escape.
Basement Window Schedule Checklist
- Opening mark, room, quantity and intended room use
- Masonry or structural opening, frame size and required installation clearance
- Operation type, handing, hardware and accessible operating position
- Required clear-opening dimensions and sill datum where applicable
- Window-well width, projection, depth, cover and escape provisions
- Frame, glass, safety glazing, privacy and declared performance criteria
- Sill, flashing, drainage, waterproofing and perimeter-seal details
- Shop drawing, sample, product-data and inspection requirements
Coordinate Basement Windows Before Ordering
A reliable basement window selection links the room requirement to the exact product, clear opening, wall interface and exterior well. Send the opening schedule, drawings, field dimensions, room use, performance requirements and destination information before production release. You can contact George House Material for a coordinated quotation review.
