Sliding patio doors should be selected as complete, tested systems. The opening size, panel arrangement, frame, glass, hardware, sill, drainage and installation interface all affect operation and performance.
This guide compares the main decisions for residential and project sliding patio doors. It avoids fixed energy-saving percentages, universal durability claims and promises that one material will perform the same in every climate or opening.
Define the Opening and Panel Configuration
Begin with architectural drawings rather than a product photograph. Record the structural opening, finished floor levels, wall build-up, exterior drainage, required clear passage and the direction of each moving panel. A two-panel slider, multi-track system and lift-and-slide door require different frames, hardware and support.
| Configuration | Useful characteristics | Coordination points |
|---|---|---|
| Two-panel slider | Simple arrangement with one moving and one fixed panel | Handing, meeting stile, screen, clear opening and fixed-panel replacement |
| Three- or four-panel slider | Wider glazed elevation and multiple opening patterns | Track count, panel stacking, sill width, structural support and drainage |
| Multi-track or stacking door | Several moving panels can collect at one side | Overall frame depth, parked-panel zone, operating force and floor interface |
| Lift-and-slide system | Hardware lifts the panel from the seals during operation | Panel weight, hardware rating, handle operation, maintenance and installer capability |
| Pocketing slider | Panels move into a wall pocket for a larger opening | Pocket access, waterproofing, drainage, cleaning and future service |
Show the door in plan, elevation and section. Confirm whether stated dimensions are structural openings, frame sizes or finished clear openings. The selected manufacturer’s drawings should control final rough openings and anchors.
Compare Frame Materials and Finishes
- Aluminum: can provide slim profiles and large configurations; review thermal-break design, coating system, corrosion exposure and structural data.
- Vinyl or uPVC: offers multi-chamber profiles and low routine finish maintenance; review reinforcement, color limitations, panel size and temperature-related movement.
- Wood: provides a natural interior finish; review species, moisture protection, exterior coating, maintenance and dimensional stability.
- Fiberglass or composite: may combine low conductivity with strength; confirm the exact profile, finish system, size limits and test data.
- Clad wood: combines an interior timber finish with an exterior protective cladding; inspect cladding joints, drainage and finish warranty conditions.
For a focused comparison, see the aluminum versus wooden window guide. The same material questions are useful for patio doors, but the moving panel size and hardware loads must be checked for the exact door system.
Read the Glass and Energy-Performance Data
Do not evaluate a sliding patio door from “double glazing” or “Low-E” alone. The National Fenestration Rating Council provides third-party ratings for fenestration products, while ENERGY STAR explains that certified windows and doors must meet performance criteria and should be selected for the relevant climate. Request the rating for the complete proposed product and size range.
| Item | What it describes | How to use it |
|---|---|---|
| U-Factor | Heat transfer through the complete product | Compare against the project specification and climate requirement |
| Solar Heat Gain Coefficient (SHGC) | Solar heat admitted through the product | Coordinate with orientation, shading and cooling or heating priorities |
| Visible Transmittance (VT) | Visible light transmitted through the product | Balance daylight with glare, privacy and glass appearance |
| Air leakage | Air passage under defined test conditions | Review the test standard, pressure and allowable project value |
| Water and structural performance | Response to water spray and pressure loads under a defined method | Match product size, configuration and design-pressure requirement |
Energy performance depends on climate, orientation, glass area, frame, seals, installation and the rest of the building. A rating supports comparison; it is not a universal utility-bill guarantee.

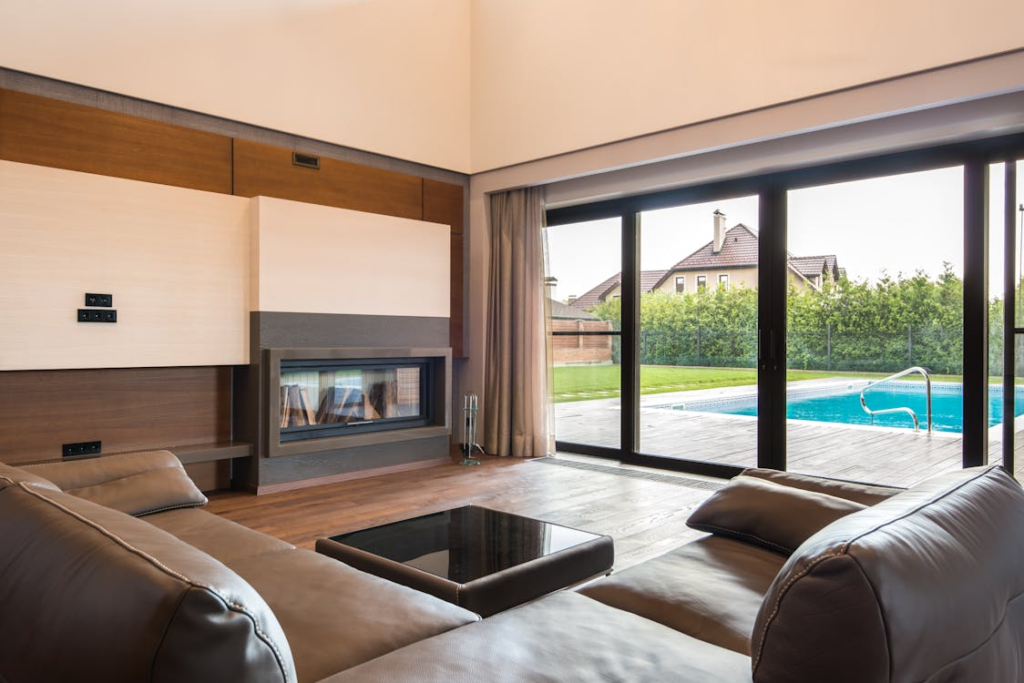

Safety, Security and Operation
- Specify safety glazing where required by the project code and door location.
- Define laminated, tempered, insulating or other glass by the required performance—not by a generic “secure glass” label.
- Check lock type, keeper reinforcement, anti-lift provision, keying and interior release.
- Review panel weight, roller rating, operating force and handle height.
- Coordinate insect screens, pet screens, child-safety requirements and access control.
- For acoustic targets, use complete-product laboratory data and review the acoustic window selection guide.
Sill, Drainage and Installation Details
Low-profile and flush-looking thresholds require careful coordination. Confirm exterior levels, drainage paths, sill pan or flashing, waterproofing continuity, sealant joints and interior floor build-up. Do not lower a sill or block drainage routes without the selected system’s approved detail.
- Verify substrate capacity, frame anchors, fixing centers and edge distances.
- Define shim locations and installation tolerances so the frame remains square and level.
- Coordinate head deflection and prevent structural loads from bearing on the frame unless designed for them.
- Keep weeps, drainage channels and track-cleaning access open.
- Record perimeter insulation, backer rod, sealant and exterior flashing responsibility.
- Use a water test or other inspection only when specified with a test method and acceptance criteria.
Sliding Patio Door RFQ Checklist
- Door mark, quantity, location, structural opening and finished floor levels
- Panel count, sliding direction, handing, track arrangement and required clear opening
- Frame material, profile series, finish code, coating and exposure conditions
- Glass build-up, safety requirement, spacer, coating, color and edge treatment
- Required U-Factor, SHGC, VT, air, water and structural ratings where applicable
- Hardware set, roller capacity, locks, handles, screens and access-control interfaces
- Sill type, drainage, pan or flashing and perimeter-installation details
- Shop drawings, samples, finish chips, glass samples and approval sequence
- Packing method, protection, lifting limits, labels, spare parts and delivery sequence
- Installation, testing, commissioning, warranty and maintenance-document responsibilities
Review the broader project windows and doors solution before issuing a multi-opening package. George House Material can coordinate schedules, finishes, glass, drawings, samples and consolidated quotations. Send plans and the door schedule through the project enquiry page.
Frequently Asked Questions
Are sliding patio doors energy-efficient?
Some products meet defined energy-performance criteria. Compare the complete door’s certified ratings, climate suitability, size and installation details instead of relying on a generic product description.
Which frame material is best?
No frame material is best for every project. Select it around opening size, exposure, thermal target, finish, maintenance, hardware load and available tested configurations.
What information is needed for a patio-door quotation?
Provide a marked door schedule, openings, configurations, frame and finish, glass build-up, performance requirements, hardware, installation boundary and delivery terms.
