Upper Cabinet Height: Standard Measurements and Planning Guide

Upper cabinet height is usually planned from the finished floor and the finished countertop, not from the cabinet box alone. In a common planning example, a 36-inch finished counter plus an 18-inch clear space places the bottom of the upper cabinets about 54 inches above the finished floor.

That 18-inch space and 54-inch bottom elevation are design conventions, not universal code requirements. The final dimension must be checked against the selected appliances and hood, user reach, lighting, backsplash, ceiling, cabinet system, local requirements and approved drawings.

Upper Cabinet Height: Quick Answer

Planning questionCommon starting pointFinal control
Clear space above a general worktop18 in is a common conventionProject use, selected equipment and approved elevation
Bottom of upper cabinet above finished floorAbout 54 in when the finished counter is 36 in and the clear space is 18 inActual finished counter elevation plus approved clearance
Upper cabinet box heightSelect to suit storage, reach and ceilingManufacturer schedule and approved cabinet drawing
Cabinet or hood above a cooktopDo not use the general 18-in conventionExact appliance and ventilation installation instructions plus applicable local requirements
Accessible storage or controlsNo single cabinet-bottom height fits every approachApplicable accessibility criteria and the intended user

Use the figures above to begin an elevation study. Do not release cabinets for production or mark fixing heights on site until the floor, countertop, appliances and cabinet-box schedule are coordinated.

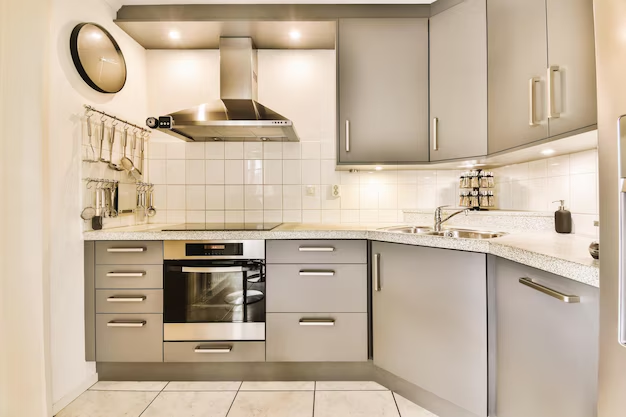

Upper kitchen cabinet bottom elevation measured from the finished floor and countertop

Separate the Four Height Measurements

Several dimensions are often called “upper cabinet height,” which causes errors in quotations and installation. Record each one separately:

  • Cabinet-box height: the outside height of the wall-cabinet carcass, excluding or separately identifying crown, light rail and other trim.
  • Mounting height: the reference used to position the cabinet on the wall. State whether it refers to the cabinet bottom, top, rail or fixing line.
  • Bottom elevation: the vertical distance from the finished floor to the underside of the cabinet or its lowest trim.
  • Countertop clearance: the clear vertical space from the finished top of the work surface to the lowest cabinet, trim, light or accessory above it.

A schedule that says only “upper cabinets at 54 inches” is incomplete. It should state “cabinet bottom at 54 inches above finished floor,” or another precise reference, and show the corresponding countertop and cabinet-top elevations.

Calculate the Bottom and Top Elevations

For a general wall run, calculate the cabinet bottom from the actual finished counter elevation:

cabinet-bottom elevation = finished countertop elevation + approved clear space

Then add the cabinet-box height to find the cabinet top. The examples below use a 54-inch bottom elevation for arithmetic only; they do not prescribe which cabinet sizes are available.

Example cabinet-box heightBottom elevationCalculated top elevationPlanning use
30 in54 in84 inLeaves more space above in a taller room
36 in54 in90 inMay suit an intermediate ceiling condition
42 in54 in96 inCan reach an 8-ft ceiling before trim, subject to level and clearance

If a crown, ceiling filler, shadow gap, light rail or decorative panel is included, dimension it separately. Do not hide those parts inside the nominal box height.

Measure from the Finished Floor

The approved elevation should use a stable project datum. In most finished kitchen elevations, that datum is the finished floor, not an unfinished slab or subfloor.

1. Confirm the Floor Build-Up

Record screed, underlay, tile, stone, timber, resilient flooring and transitions that are not yet installed. A cabinet line marked from the structural slab can end up wrong when the finish build-up is added.

2. Confirm the Finished Counter Elevation

Add the base cabinet, support system and final countertop thickness. Do not assume every worktop finishes at exactly 36 inches; accessibility requirements, thick edges, raised bars, lowered work areas or another cabinet system can change it.

3. Measure the Room at Several Points

Check floor and ceiling levels along the complete cabinet run. Record the high point of the finished floor, the low point of the ceiling and wall deviations that affect fillers, scribes or alignment.

4. Transfer One Coordinated Reference Line

Use the approved elevation to establish a level cabinet-bottom or support-rail line. Cross-check the calculated top against the measured ceiling before drilling or installing supports.

Standard upper cabinet planning diagram showing countertop clearance and finished floor datum

Plan the Height by Location and Use

LocationHeight decisionChecks before approval
General preparation counterBegin with the common 18-in clear-space convention, then test the work zoneCountertop thickness, small appliances, lighting, sockets and reach
Sink runKeep the planned work and sight area usable; no universal extra height appliesTap height, window, drying storage, lighting, splash zone and user reach
Cooktop or rangeUse the selected appliance and hood instructions, not the general worktop ruleCombustible clearances, hood type, capture area, duct, controls and local requirements
Refrigerator or tall applianceCoordinate the cabinet bottom and depth to the equipment envelopeCase, hinge and door clearances, ventilation, service access and delivery path
Coffee or appliance stationReserve operating and ventilation space for the selected productsLid or door travel, steam, heat, sockets, cable routes and cleaning access
Accessible storage zonePlace required operable parts and usable storage within the applicable reach rangeApproach, obstruction depth, counter height, handles and intended users

The wider kitchen cabinet height guide covers base, wall and tall units. Keep this page focused on the measurement and mounting decisions for upper cabinets.

Coordinate Cooking Appliances and Range Hoods

Do not carry an 18-inch countertop clearance across a cooktop or range. Cooking zones can require a larger vertical separation, a hood, a protected cabinet configuration or another arrangement. The correct dimension varies by the exact cooking product, fuel type, hood and jurisdiction.

  • Select the cooktop or range and obtain its current installation instructions.
  • Select the hood, power pack or over-the-range appliance and obtain its installation drawing.
  • Compare every stated minimum and maximum clearance, including distances to combustible material.
  • Coordinate hood width, depth, bottom elevation, duct route, make-up-air needs where applicable, power and control location.
  • Resolve any cabinet above or beside the hood as part of the complete appliance elevation.
  • Use the most restrictive applicable requirement and document the source on the approved drawing.

As an example of why the product must be selected first, Broan publishes a separate installation guide for the BKDB1 under-cabinet hood from its product page. That model’s documents should not be generalized to another hood. Local code review and the cooking-appliance instructions may add further requirements.

Choose the Cabinet Box for the Ceiling

Start with the approved cabinet-bottom elevation, then work upward. A taller box can increase storage, but it also changes reach, door operation, visual proportion, cost and the space available for ceiling adjustment.

Cabinets Below the Ceiling

Dimension the open zone above the cabinets intentionally. Check whether it will remain open, receive a dust top, support display items or be closed with a fascia. Small accidental gaps are difficult to finish consistently when the ceiling is not level.

Cabinets to the Ceiling

Allow a controlled filler, scribe or trim strategy. Verify the lowest ceiling point, door swing, crown projection and installation access. “Ceiling height” on an architectural plan is not a substitute for site measurements.

Stacked Upper Cabinets

Show the lower and upper boxes, horizontal joint, doors, lighting, access and trim separately. Decide whether the upper tier is working storage or occasional storage and provide safe access where needed.

Manufacturer offerings differ. Review the selected cabinet specification and approval drawing rather than assuming that a nominal 30-, 36- or 42-inch box is available in every construction, door style and width. KraftMaid Elements, for example, directs users to its official specification-book resources for the full product offering.

Check Reach and Accessibility

Comfortable reach depends on the user, shelf depth, counter projection, approach and what must be operated. Raising or lowering the complete cabinet by one or two inches is not a complete accessibility strategy.

The U.S. Access Board explains that ADA reach ranges apply to operable parts, not automatically to every non-operable portion of a cabinet. Its guidance shows an unobstructed forward reach of 15 to 48 inches, with the high reach reduced to 44 inches when a permitted forward obstruction is deeper than 20 inches. Side-reach limits also change with obstruction depth and height. Review the official Guide to the ADA Accessibility Standards for operable parts when those standards apply.

Do not turn the 48-inch figure into a universal cabinet-bottom rule. Determine which handles, controls or storage must be accessible, provide the required floor approach, check the actual counter obstruction and coordinate pull-down storage, open shelves, lower work areas or other solutions where appropriate.

Designer comparing upper cabinet reach storage and ceiling options for kitchen users

Coordinate Lighting, Backsplash and Hardware

The usable clearance is measured to the lowest finished element, which may be a light rail, luminaire or accessory rather than the cabinet box.

  • Lighting: show fixture depth, diffuser, driver, cable route, switch or sensor and service access.
  • Backsplash: coordinate slab or tile module, joints, outlets, edge trim and the junction under the cabinet.
  • Sockets: confirm device height and clearance from rails, lights and small appliances.
  • Doors and lifts: test the open position against the ceiling, crown, hood, side wall and adjacent doors.
  • Handles: check reach and door-to-wall interference. The cabinet hinge guide can support the hardware discussion, but the selected hinge data controls drilling and operation.

For appliance garages, shelves and countertop equipment, check the complete operating envelope. Steam from kettles or coffee machines, heat, lid travel and ventilation can make a visually convenient opening unsuitable for the selected product.

Record Upper Cabinet Heights in Drawings and RFQs

For villas, apartments, hotels and commercial projects, include height controls in the cabinet schedule and request for quotation. A coordinated package should identify:

  • room, wall elevation, cabinet mark and quantity;
  • finished-floor datum and any level change;
  • finished countertop elevation and thickness;
  • cabinet-bottom, box-height and cabinet-top dimensions;
  • crown, filler, scribe, light rail and open gap dimensions;
  • cabinet width, depth, construction, finish and door type;
  • shelf arrangement, intended storage and accessibility requirement;
  • selected appliances, hood, lighting and manufacturer document revisions;
  • backsplash, outlets, plumbing, gas, duct and cable interfaces;
  • wall construction, fixing substrate and required project-specific support design;
  • site-verification, shop-drawing, sample and approval responsibility.

Use the custom kitchen cabinet design page to coordinate the wider layout, finishes, worktops, services and approval sequence. Record unresolved information as pending instead of replacing it with an assumed “standard.”

Installation and Inspection Sequence

  1. Confirm the latest approved elevation, cabinet schedule and appliance documents.
  2. Verify the finished-floor datum, floor and ceiling levels, wall condition and countertop build-up.
  3. Mark the cabinet-bottom or manufacturer support-rail line from the approved datum.
  4. Cross-check the cabinet top, filler and door operation against the measured ceiling.
  5. Locate the approved structural fixing points and services before drilling.
  6. Install supports and cabinets using the specified system and project-appropriate fixings.
  7. Level and align the boxes; verify joints, fillers, scribes and end panels.
  8. Check door and lift operation, shelf access, hood and appliance clearances.
  9. Install and test lighting, controls and coordinated accessories.
  10. Record the completed elevations and inspection result against the cabinet marks.

Cabinet weight, wall construction and fixing design are project-specific. Follow the cabinet manufacturer, approved shop drawings and qualified project professionals rather than using a generic fastener rule.

Installer checking level mounting line and ceiling clearance for upper kitchen cabinets

Common Upper Cabinet Height Mistakes

MistakeProject riskControl
Calling every dimension “cabinet height”Fabrication and installation teams use different referencesRecord box height, bottom elevation, top elevation and clear space separately
Treating 18 inches as universal codeThe layout conflicts with equipment or project requirementsLabel it as a starting convention and verify every interface
Measuring from an unfinished floorThe installed elevation changes after flooringState the finished-floor datum and build-up
Using 18 inches over a cooktopUnsafe or noncompliant appliance arrangementUse exact appliance, hood and local requirements
Ignoring the lowest trim or lightThe real working clearance is smaller than the drawing suggestsDimension to the lowest finished element
Assuming the ceiling is levelDoors, crown and fillers do not fitMeasure the entire run and allow a controlled scribe strategy
Changing height only for a userHandles, shelves or controls may still be unreachableReview approach, reach, storage and accessories together
Approving before appliance selectionCabinets require site modificationFreeze models and document revisions before production

Frequently Asked Questions

What Is the Standard Height from Countertop to Upper Cabinets?

Eighteen inches is a common starting convention for a general counter run. It is not a universal code dimension. Check the actual work zone, equipment, lighting, user reach and local requirements.

How High Is the Bottom of an Upper Cabinet?

With a 36-inch finished countertop and an 18-inch clear space, the calculated bottom elevation is about 54 inches above finished floor. If either input changes, recalculate the result.

Should Upper Cabinets Go to the Ceiling?

They can, but the decision depends on ceiling height and level, available cabinet boxes, user reach, door operation, trim, installation access, storage needs and budget. Include a deliberate filler or scribe detail rather than assuming a perfect ceiling.

How High Should a Cabinet Be Above a Sink?

There is no single extra height for every sink. Coordinate the tap, window, drying storage, lighting, backsplash, splash exposure, sight line and user reach. Keep the measurement reference clear.

How High Should a Cabinet Be Above a Stove?

Do not use the general 18-inch worktop convention. Follow the exact range or cooktop and ventilation-equipment installation instructions, applicable local requirements and the approved appliance elevation.

Final Upper Cabinet Height Check

A reliable upper cabinet elevation starts with the finished floor and counter, separates every height definition, and then coordinates the cabinet box with users, appliances, ventilation, lighting, backsplash, ceiling and wall condition. Treat 18 inches and 54 inches as transparent planning examples, not automatic rules.

Review available custom kitchen cabinet and wardrobe systems, then send the plans, cabinet schedule, appliance list, room dimensions, quantities and delivery requirements through the project enquiry page for coordinated review and quotation.
