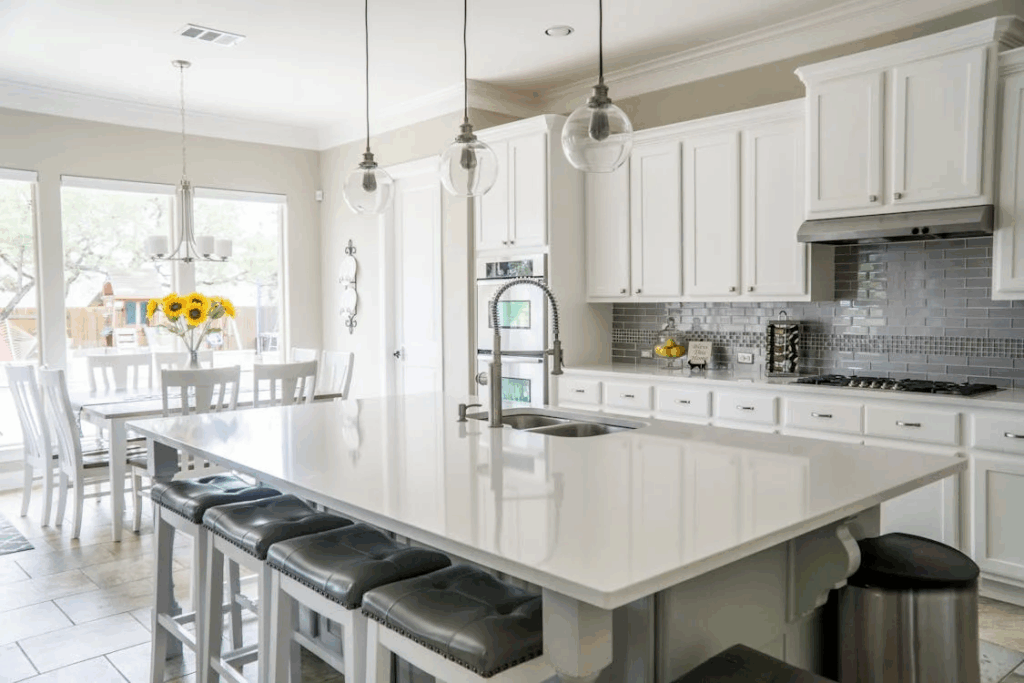

Kitchen cabinet height is not one number. A complete kitchen uses separate levels for base cabinets, the finished worktop, wall cabinets, tall units and appliance housings. Each level must be measured from a stated datum and coordinated with the room, users, equipment and selected cabinet system.
For a common North American planning example, a 34 1/2 inch base cabinet with a 1 1/2 inch worktop creates a 36 inch finished counter. If a wall cabinet begins 18 inches above that counter, its bottom is 54 inches above the finished floor. These are useful starting points, not universal rules. The approved dimensions must follow the actual product data, finished floor, worktop construction, appliance instructions, accessibility brief and local requirements.
This guide covers height planning across the whole kitchen. For a deeper treatment of wall cabinets only, use the upper cabinet height guide. For cabinet box widths and depths as well as height families, see the standard kitchen cabinet size guide.

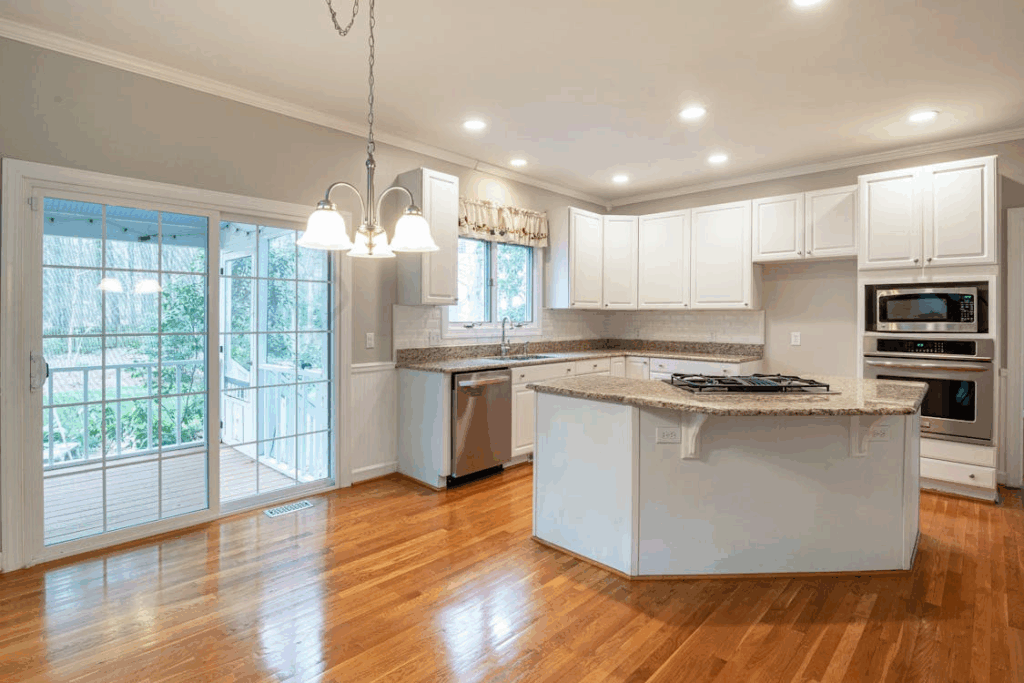

Kitchen Cabinet Height at a Glance
The table below is a coordination reference for early layouts. It separates cabinet-box height from installed elevation so the schedule does not confuse a product dimension with a level measured from the floor. Millimetre values are rounded planning conversions, and the selected manufacturer data remains controlling.
| Element | Common planning reference | What controls the final level |
|---|---|---|
| Base cabinet box | 34 1/2 in or about 876 mm high | Cabinet system, plinth or legs, floor level and worktop build-up |
| Finished worktop | 36 in or about 914 mm above finished floor | User brief, task, appliance alignment, accessibility and local requirements |
| Wall cabinet bottom | Often 54 in or about 1372 mm above finished floor | Finished counter level, backsplash zone, appliances, reach and lighting |
| Counter to wall cabinet | Often 18 in or about 457 mm | Countertop appliances, hood, sink, window and design intent |
| Tall cabinet | Common families include 84, 90 and 96 in | Ceiling, lifting clearance, plinth, trim, appliances and product range |
| Appliance cabinet | Model specific | Current installation sheet, ventilation, services, trim and access |
Use Typical Dimensions as a Starting Point
KraftMaid’s kitchen cabinet size guide is one manufacturer example that lists a 34 1/2 inch base cabinet, a typical 36 inch finished counter, wall cabinets installed from a 54 inch floor level and tall cabinets from 84 to 96 inches. Other systems use different modules, plinths and modification rules. A project should therefore record both the planning reference and the exact selected product.
State the Datum Beside Every Height
Write heights as finished floor level to cabinet bottom, finished floor level to counter, or counter surface to cabinet bottom. Avoid labels such as standard height without a start and end point. On projects with several rooms or floor finishes, identify the room reference and finished floor level on every elevation.
Understand the Different Height Measurements
Cabinet Box Height and Installed Height
The cabinet box is only one layer. A base cabinet may sit on adjustable legs, a separate plinth, a site-built platform or a framed toe-kick. Shims used to level the run can also change the installed top. The drawing should distinguish the box height, support system and installed level instead of adding them invisibly during installation.
Finished Counter Height and Worktop Thickness
The finished counter level includes the cabinet support and the complete worktop build-up. A thin surface on a substrate and a thicker slab can produce the same visible height through different details. Edges, underlay, reinforcement and levelling tolerances should be shown in section. If the top material changes after cabinet approval, recheck the counter, backsplash, outlet and appliance levels.
Plan Base Cabinet and Counter Height
Coordinate the User Task and Appliance Line
A general preparation counter, a baking station, a seated work surface and an accessible work area may need different solutions. Review who uses the kitchen, what tasks occur at each run and whether a continuous appliance line must align with the counter. A change made for one user can affect the range, dishwasher, sink, plumbing and adjacent drawer heights, so treat it as a layout decision rather than an isolated cabinet adjustment.
Islands are not automatically the same height as the perimeter. If the island includes preparation, seating, a sink or a cooktop, coordinate the finished surface, support, services, overhang and stools together. A two-level island adds junctions and can reduce usable continuous worktop area, so confirm the functional reason before adopting it.
Find the Highest Point Before Levelling
Finished floors are rarely perfectly level. Survey the run at several points and establish a control line from the highest relevant location so the cabinets and appliances can be level without forcing the worktop into a slope. Record how excessive variation will be handled. Do not trim a plinth or enlarge a filler on site without checking the visible alignment and approved tolerances.
Set Wall Cabinet Height
Start From the Finished Counter
The familiar 18 inch space between a finished counter and a wall cabinet is a common planning reference, not a measurement to take from an unfinished floor. First establish the installed counter level, then set the cabinet bottom. This keeps the usable backsplash zone consistent even when floor levelling or worktop thickness changes the counter slightly.
Adjust the Level for Real Conditions
Check the tallest countertop appliance, faucet movement, sink position, window trim, under-cabinet lighting and intended backsplash. A lower wall cabinet may improve access but can restrict appliances and the working view. A higher cabinet can open the wall visually but may make everyday shelves harder to reach. Test the layout with the actual users and equipment before the shop drawing is approved.
Keep the scope of this page distinct from the upper cabinet height guide. This article coordinates wall cabinet levels with base and tall units; the dedicated upper-cabinet page can carry the more detailed discussion of wall-cabinet-only options and variations.
Choose Tall Cabinet Height
Align Tall Units With the Wall Cabinet Top
Tall pantry and appliance cabinets often align with the top of adjacent wall cabinets. For example, a 90 inch tall cabinet aligns with a 36 inch wall cabinet whose bottom is at 54 inches. That arithmetic is useful only when the selected modules, plinth and installation method match the example. Show the actual top levels on the elevation rather than assuming the product names will align.
Allow Space to Assemble Lift and Scribe
A cabinet that fits the ceiling height on paper may not be able to stand upright in the room. Check the diagonal lifting clearance, ceiling variation, sprinkler or light locations, cornice, service access and installation sequence. Where the top meets an uneven ceiling, define a filler, scribe or shadow gap. Do not force the cabinet against the ceiling and transfer building movement into the box.
Coordinate Appliances and Ventilation
Use the Exact Appliance Installation Sheet
Refrigerators, wall ovens, microwaves, dishwashers and integrated equipment are model specific. Obtain the current manufacturer installation sheet before finalizing cabinet openings. Show required ventilation, electrical or gas connections, support, trim, door swing, service access and removal path. A generic standard appliance opening is not a safe production instruction.
Treat Cooking Clearances as Equipment Specific
The cabinet and hood above a cooktop or range must follow the selected appliance and ventilation instructions together with the governing local requirements. Do not publish one clearance as if it applies to every gas, electric or induction product. Record the controlling model numbers and dimension the approved vertical separation on the kitchen elevation.
| Interface | Height information to confirm | Evidence or check |
|---|---|---|
| Range and hood | Cooktop level, hood bottom, cabinet bottom and duct route | Both installation manuals and local project requirements |
| Refrigerator | Overall height, top ventilation, door hinge rise and adjacent cabinet top | Current product data and full door movement |
| Wall oven | Opening bottom and top, support shelf, controls and ventilation | Model installation sheet and service locations |
| Dishwasher | Finished opening height and counter underside | Floor finish, worktop build-up and levelling range |
| Countertop appliance | Appliance operating height below the wall cabinet | Actual product dimensions, lid or door movement and safe use |

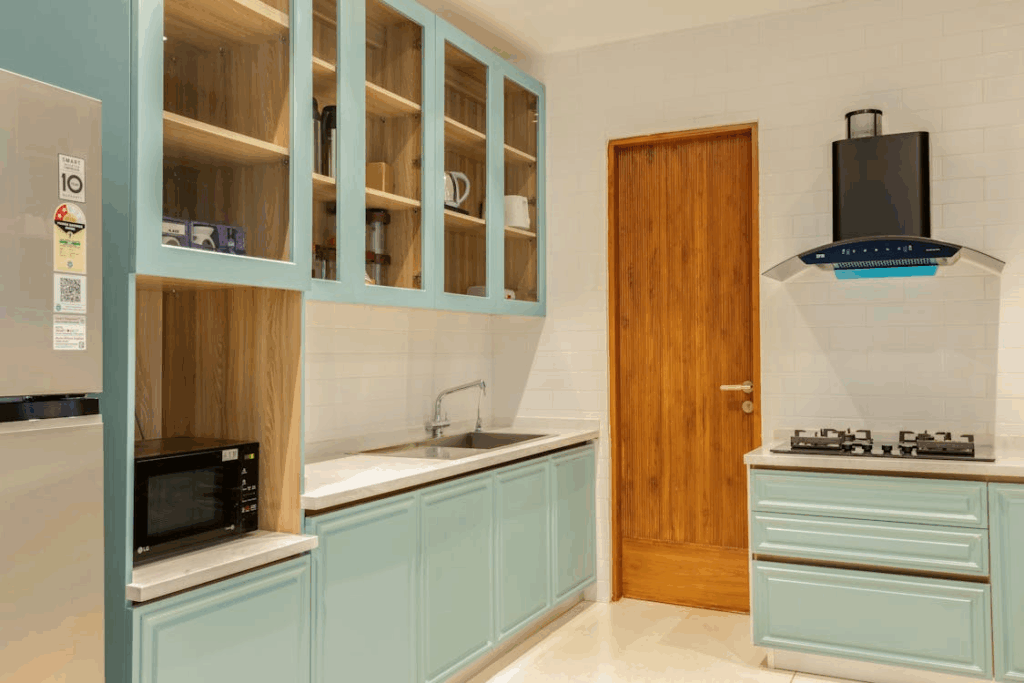

Coordinate Ceiling Soffit and Trim
Check the Whole Vertical Stack
Add the finished floor to counter level, counter-to-wall-cabinet space, wall cabinet height and top trim. Compare the sum with the lowest verified ceiling point, not only the nominal room height. Include plaster, tile, suspended ceilings, beams and bulkheads. The remaining dimension should be intentionally assigned to trim, a filler, a shadow gap or open space.
Resolve Tall Ceilings Without Unusable Storage
Stacked cabinets and extended upper sections can use a tall wall, but high shelves may be appropriate only for infrequently used items. Confirm door proportions, hinge access, lighting, cleaning and safe reach. A decorative top section should not interfere with ventilation routes or conceal access panels that the building team needs to maintain.
Plan Reach and Accessibility
Reach depends on the user’s body, approach and any obstruction in front of the storage. For projects governed by U.S. ADA requirements, the U.S. Access Board operable parts guide explains reach ranges and notes that cabinet hardware serving accessible storage can be an operable part. It also shows how an obstruction such as a counter reduces high reach. These criteria apply within their defined scope and are not a universal residential kitchen rule.
Put Daily Items in the Usable Zone
Even where a formal accessibility standard does not apply, organize frequently used items within the comfortable reach of the intended users. Drawers, pull-outs and lower shelves can improve access without lowering every wall cabinet. Store occasional items higher only when a safe retrieval method and the user’s needs have been considered.
Coordinate Hardware and Controls
Handle position, opening force, lift-up mechanisms and appliance controls can matter as much as the cabinet box. Select hardware from the door size, weight and user brief, and record it in the schedule. The cabinet hinge types guide explains how door position, opening angle and adjustment needs affect hinge selection.
Measure and Mark the Kitchen
- Confirm whether the survey records unfinished or finished surfaces and establish the finished floor datum for each cabinet run.
- Measure the ceiling and wall lengths at several points and record floors, walls or corners that are not level, plumb or square.
- Locate windows, doors, trims, beams, bulkheads, access panels and every service point that affects the vertical layout.
- Obtain exact appliance, sink, faucet and ventilation information and mark any item that is still pending.
- Set the proposed base cabinet support, worktop build-up and finished counter level, then check appliance alignment.
- Set wall cabinet bottoms from the finished counter and check countertop appliances, backsplash, lighting and user reach.
- Select wall and tall cabinet heights, then resolve the ceiling zone, trim, lifting clearance and installation sequence.
- Mark a level control line and verify the critical dimensions again before production release or site drilling.
A laser can speed up the survey, but the record still needs labelled dimensions and photographs tied to the room plan. The kitchen design page shows how room dimensions, appliance models, services and storage functions come together in a complete layout rather than as independent measurements.
Coordinate the Construction Details
Resolve Plinth Fillers and Scribes
Plinth height changes the base cabinet and counter levels. Side fillers protect door and drawer movement at walls and tall units, while top fillers or scribes absorb ceiling variation. Show nominal and finished sizes, visible finish and fixing method. A filler should solve a known interface rather than hide an unverified measurement.
Add Lighting Backsplash and Power
Under-cabinet lights, valances and wiring reduce the clear zone below a wall cabinet. Tile modules, upstands and decorative panels also influence the finished backsplash height and joint positions. Coordinate outlets, switches and lighting feeds before cabinet installation so visible devices do not collide with shelves, trim or appliance plugs.
Use the selected product specification rather than a general size chart when the project moves from planning to procurement. KraftMaid’s product specification guides illustrate the level of exact cabinet-by-cabinet information a manufacturer can provide. The appropriate source for the project is the current guide for the actual chosen product line.
Approve Heights in Shop Drawings
The elevation should make the vertical logic auditable. Dimensions, product references and revision status need to agree across the plan, sections, cabinet schedule and appliance list. If one item remains undecided, show it as an open issue instead of allowing production to infer a number.
| Approval item | What the record should show | Why it matters |
|---|---|---|
| Datums | Finished floor, finished counter and ceiling references | Prevents mixed start points and cumulative errors |
| Cabinet levels | Base support, wall cabinet bottom and top, tall cabinet top | Controls alignment across the complete elevation |
| Appliances | Model, opening, clearance, ventilation, services and door movement | Protects fit, operation and future service |
| Finishes and trim | Worktop build-up, backsplash, plinth, fillers, scribes and cornice | Resolves the real installed height and visible junctions |
| Hardware and storage | Handles, hinges, lift systems, drawers and pull-outs | Checks reach, collisions and usable internal space |
| Approval control | Revision, comments, open items, approver and release status | Prevents fabrication from an obsolete or incomplete record |
The procurement and coordination services page outlines how scope review, product selection, drawings, samples, production follow-up, inspection and packing can be organized. Confirm the exact responsibilities and deliverables for the project rather than assuming every service is included.
Common Kitchen Cabinet Height Mistakes
- Measuring from an unfinished floor and later adding a floor build-up without revising cabinet levels.
- Treating a 34 1/2 inch base box as the finished counter height.
- Setting wall cabinets from the floor before the finished worktop level is confirmed.
- Using one range-hood clearance for every appliance instead of the selected manuals and local requirements.
- Ordering a tall cabinet that fits the ceiling dimension but cannot be lifted into position.
- Ignoring ceiling variation, lighting, backsplash modules, outlets, trim and countertop appliances.
- Choosing cabinet height only from appearance without testing reach and daily storage use.
- Releasing production before appliance models, open dimensions and drawing revisions are controlled.
Kitchen Cabinet Height FAQ
What Is the Standard Kitchen Cabinet Height
There is no single height for the whole kitchen. A common planning example uses a 34 1/2 inch base cabinet and a 36 inch finished counter. Wall cabinets are often set with their bottoms at 54 inches above the finished floor, while tall cabinets commonly use 84, 90 or 96 inch height families. Confirm the actual cabinet system and project conditions.
How High Should Wall Cabinets Be Above the Counter
An 18 inch space is a common starting point, but the final dimension should account for the finished counter, countertop appliances, sink or cooktop condition, hood instructions, lighting, backsplash and user reach. Measure from the finished worktop rather than assuming a floor level.
Can Kitchen Cabinets Go to the Ceiling
They can when the product system, room geometry and installation sequence support it. Check the lowest ceiling point, lifting clearance, trim, scribe, ventilation, access and usable reach. A small controlled gap or filler may be more practical than forcing a tall cabinet against an uneven ceiling.
Should All Kitchen Counters Be the Same Height
Not necessarily. A project may use a different level for a particular user, task or seating arrangement. Any change must be coordinated with appliances, plumbing, worktop joints, storage and the visual line of adjacent cabinets. Consistency is useful, but function and the approved brief control the decision.
When Should Cabinet Heights Be Approved
Approve them after the finished room information, appliance models, worktop build-up, storage brief and relevant accessibility or code requirements are known, and before production release. Recheck the drawings if any controlling product or finish changes.
Prepare the Kitchen Cabinet Height Brief
A reliable height schedule starts with the finished room and ends with an approved elevation. Record the floor datum, ceiling survey, base support, finished counter, wall and tall cabinet levels, appliance interfaces, trim, lighting and open items. Keep the size schedule, drawings and selected product data on the same revision.
